Basic

Premium-White

Premium-Black

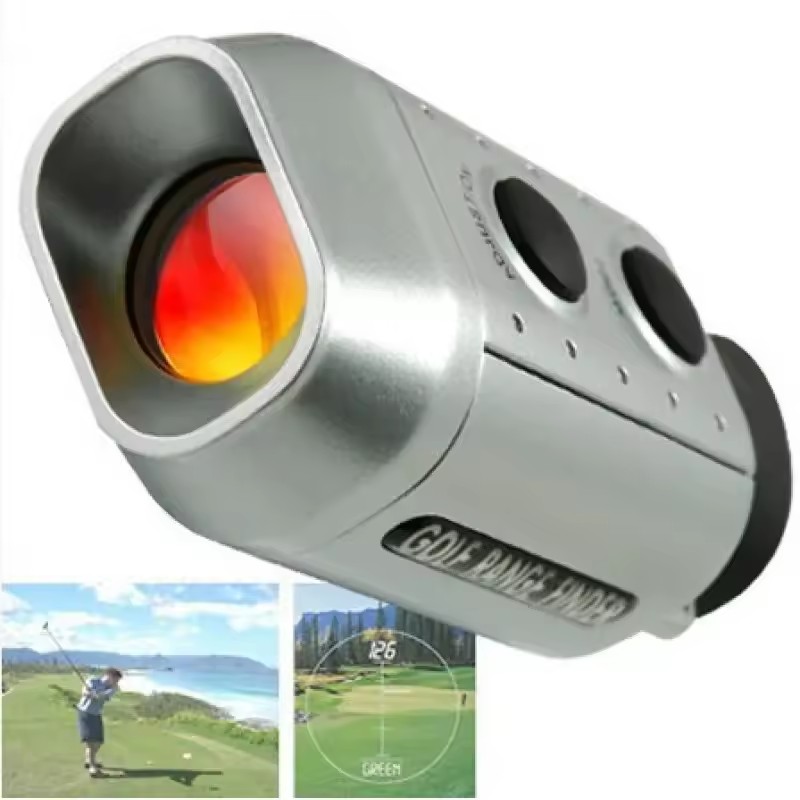

【Basic Features】

This is a newly invented golf observation instrument that uses precision optics and digital technology to measure distance. It is a very safe distance testing device. It does not emit any form of energy and does not cause any damage or damage to the human body during distance measurement.





II.Two or two functions

1. GREEN MODE

This function is specially designed for golfers. You can easily get the distance between your holes

2. GENERAL MODE

This function is suitable for ordinary situations. First, you can enter the height of the target to measure the distance between you and the target





III. Component Name

1. Switch/adjustment key

2. Function keys

3. Installation position of battery

4. Peep hole

5. Objective lens

Main parameters and indicators:

Objective lens: 28mm;

Eyepiece: 16mm;

Resolution: 13 ″;

Magnification: 7 times;

Maximum test distance: 930 yards (1 yard=0.914 meters)

Visual angle: 7.8 °;

Power supply: use two cr2032 button batteries

Volume: 90mm × 50mm × 38mm;





IV. Usage

1. Press the switch/adjustment key to start the instrument, and the safety will directly enter the plateau function

2. When playing golf:

The height of the ruler in yards (2.6 yards) is entered

(1) Align the screen line with the horizontal line of the pad

(2) Press the switch/adjustment key to raise the position of the scan line to the top of the golf flagpole

(3) The number will appear at the top of the screen, indicating your distance from the hole

3. Distance used to measure special targets

When the function key is pressed, the instrument will enter the general function state, and the screen will display three digits and one decimal point





If you want to check the distance between you and the target, please enter its height

(1) Press the switch/adjustment key to enter the general function status, and the screen will display three digits and one decimal point

(2) Press the function key to move to ten digits, and then press the switch/adjustment key to enter the number, the range is also 0 to 9.

(3) Repeat the above steps to set each digit and one digit below the decimal point.

(4) Press the function key to end the above input process.

(5) Depending on the height you entered, the screen displays the distance you can measure.

(6) Align the screen line with the target line.

(7) Press the switch/adjustment key to raise the position of the scan line to the top of the target.

(8) The number will appear at the top of the screen, indicating the distance between you and the target.





V. Precautions

1. The displayed distance is consistent with the entered height unit.

2. The power is automatically switched on and off 60 seconds after the operation.

3. Attention! Please do not use this product to observe the sun with naked eyes, which will cause permanent damage to your eyes.

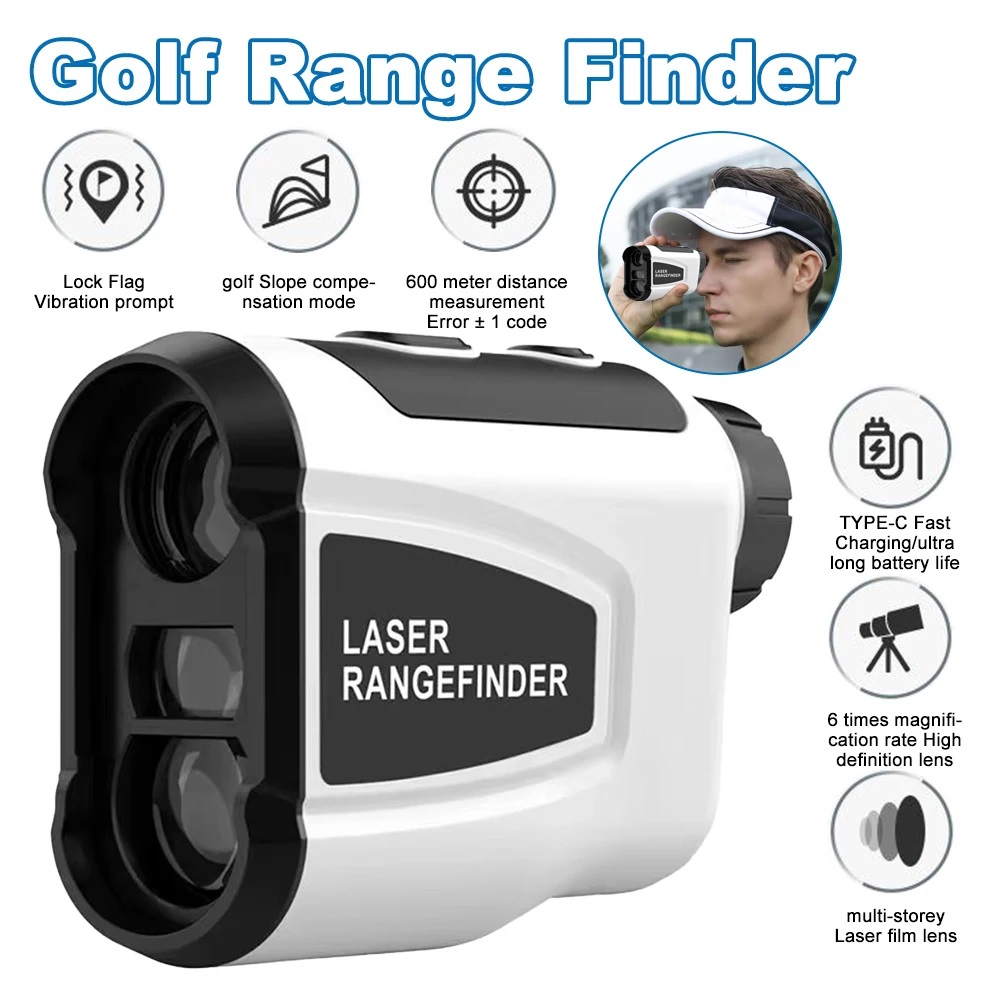

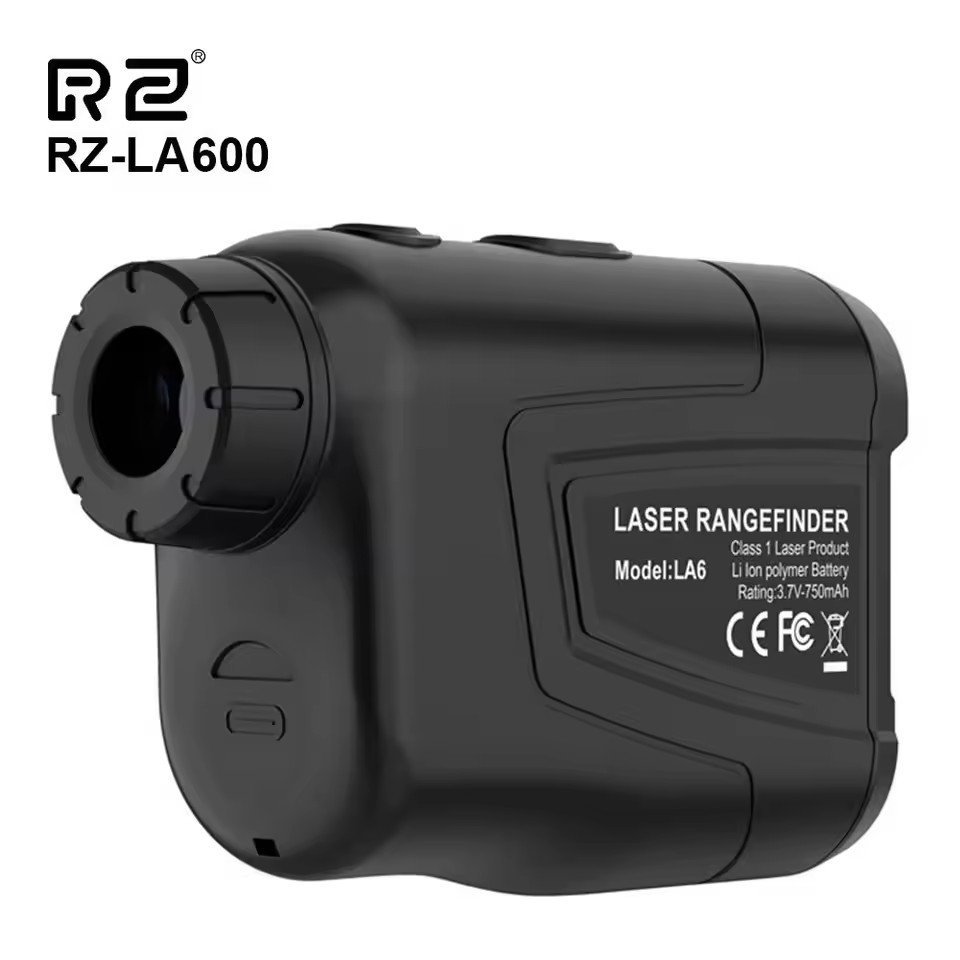

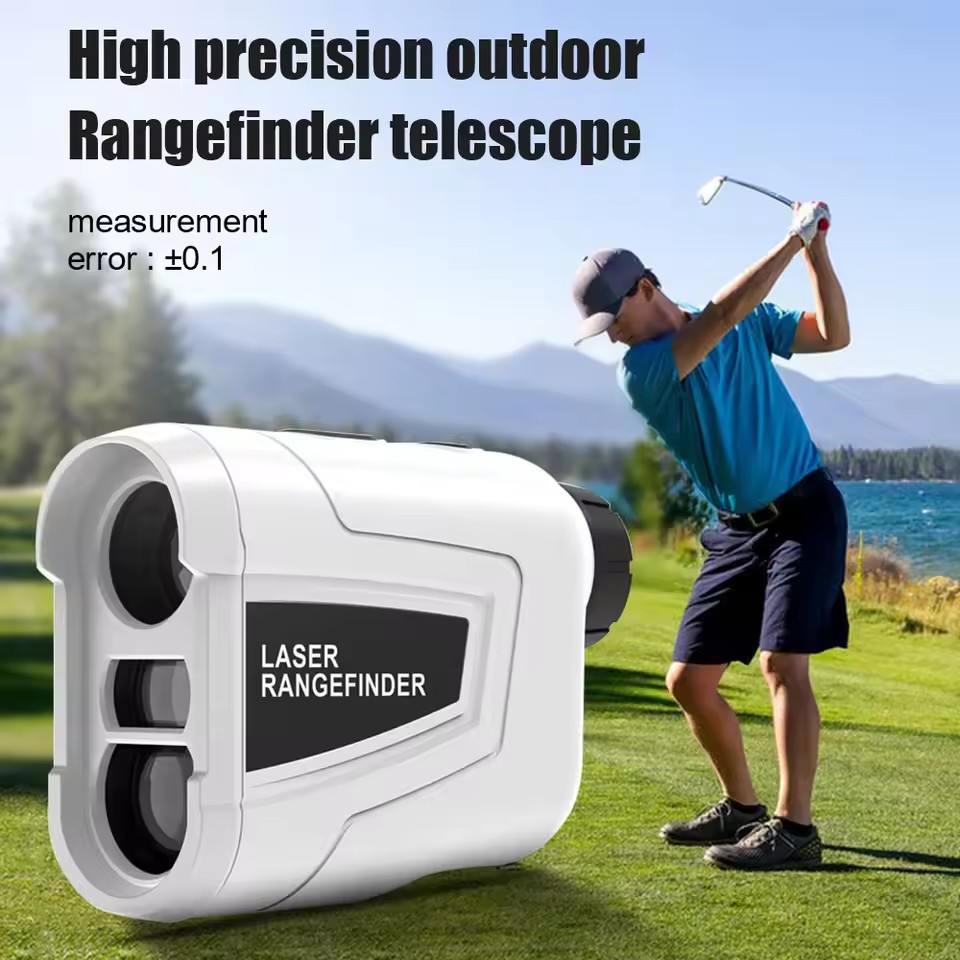

【PREMIUM Features】



High-precision measurement: measurement accuracy ±1.0M, ensuring the accuracy of the measurement results.

Multiple modes: single distance measurement, continuous distance measurement, golf slope compensation, height and angle measurement mode, angle measurement level mode, speed measurement mode, to meet different measurement needs.

Low power consumption design: no need to worry about power for long-term use.

Automatic shutdown: automatic shutdown when not working, saving power.

Wide application: suitable for golf, construction, outdoor sports, etc.





Specifications:

Measuring range: 600m/1000m

Laser type: 905nm

Side angle range: ±60°

Magnification: 6X

Eyepiece diameter: 16mm

Objective diameter: 25mm

Measurement unit: M, Y

Pole lock: yes

Vibration prompt: yes

Range measurement accuracy: +(1.0m+Dx0.2%)

Resolution: 0.1m

Auto power off time: 12 seconds

Angle measurement accuracy: about +1°

Working temperature: -10℃-40℃

Battery: 3.7V-750mAh lithium-ion polymer battery

Dimensions: 10.5 * 8.2 * 4.3cm/4.1 * 3.2 * 1.7 inches

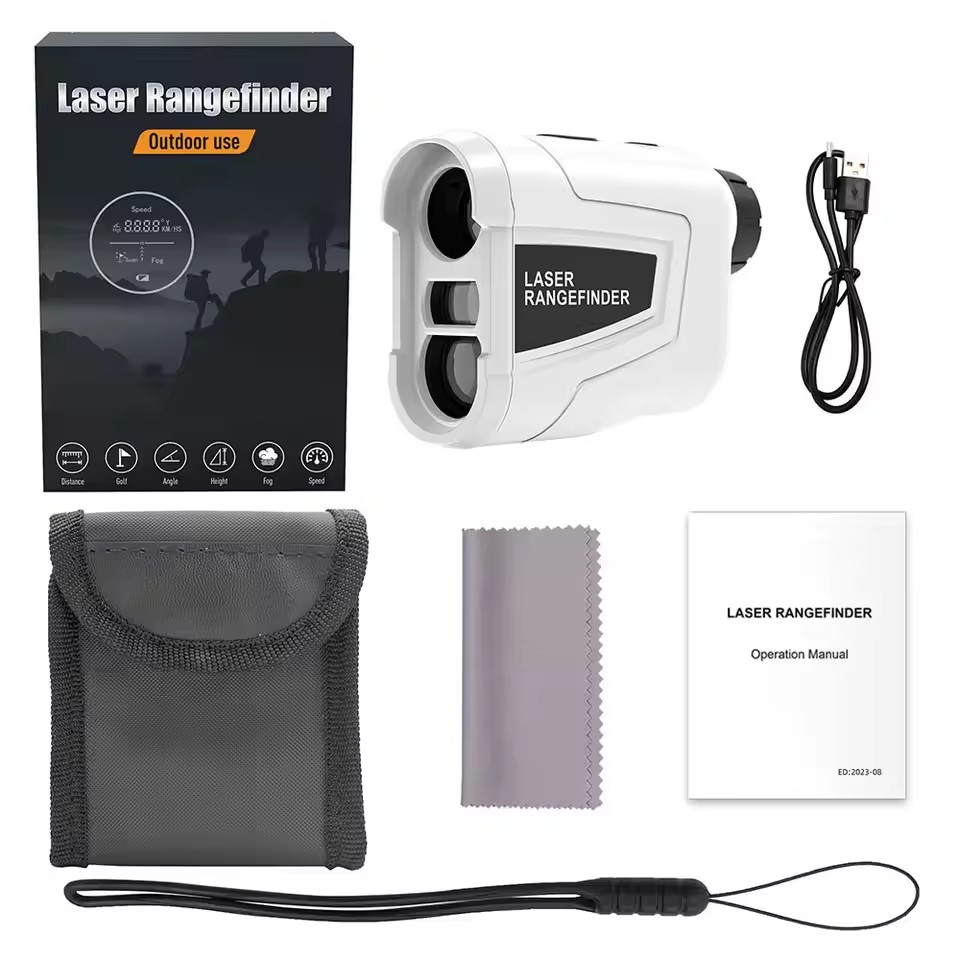

Package list:

1x rangefinder

1*charging cable

1*storage bag

1*cleaning cloth

1*hand strap

1*user manual
